Sunday, March 19, 2017

Adapting Our Cities to Reality


We have been in a position of weakness surrounded by the power of tooth and claw for thousands of years, and have had to dominate without conscience to survive. Success has given us time to pursue non-lethal competition. It mimics our survival efforts with incomplete rules that substitute for conscience. Competition without conscience is war by another name. It can make the concept of democracy a casualty.
A superior predator that does not respect its species will not survive the carnage - until it recognizes the symbiotic policy of the planet. It is an axiom we have ignored within the perimeters of partial safety we have created. This safety has encouraged us to compete with the planet for land as our need for shelter grows with success. Growth is considered success, and it has expanded the urban pattern into amorphous, pathogenic sprawl surrounded by contaminated water. The two are contained within a plastic bag of atmosphere that accumulates the heat and pollution generated by growth and success. The combination threatens the gift we have been given. How much more will it take for the ultimate predator to recognize that the planet cannot be dominated?
It is we who must adapt, and the contributions of many are required. I have written The Science of City Design to address the issue of shelter. It provides a language capable of measuring, evaluating, and expressing land use decisions in mathematical terms of shelter capacity, intensity, intrusion, and dominance. You will learn that these terms and their definitions can lead site planning and shelter quantity decisions to form an improved quality of life over time. The goal is to shelter the activities of growing populations within a limited Built Domain that protects their quality and source of life - The Natural Domain. It is one of many precise languages written to convert opinion to knowledge. Its use will require adaptation that is a challenge to dominating, predatory power promoted by competitive instinct. As always, our competing instincts are the issue. Future decisions will reveal if we recognize the policy of a planet that demands symbiotic behavior from a predator that must adapt to its stewardship responsibility.

Photo courtesy of NASA



Tuesday, March 7, 2017

Graduating from the Floor Area Ratio - revised


The floor area ratio FAR is a zoning regulation originally created to protect public health, safety, and welfare from excessive construction in urban areas. It is a project measurement equal to gross building area divided by gross land area in square feet. A floor area ratio of 5, for instance, means that 5 acres of gross building area may be constructed on one acre of gross land area. The simplicity of the regulation is attractive, but its simplicity inadequately leads the decisions that combine to determine shelter capacity, intensity, intrusion, and dominance within projects, neighborhoods, districts, cities, and regions.

CORRELATION

I’ll make my point with Table 1. It is a forecast model constructed to predict shelter capacity in square feet of gross building area per buildable acre of land when no parking is required. There are eight boxes in the Land Module and five boxes in the NPL Module. The values entered in these boxes may be modified at will and represent design specification decisions. These decisions are correlated to find the maximum core area available for a building floor plan in cell G32 using the architectural algorithm in cells H3-H33. The core area found in cell G32 is used by the master equation in cell A35 to predict gross building area options in cells B40-B49. These options are based on the floor quantity alternatives entered in cells A40-A49.



The shelter capacity options related to the gross building area predictions in Col. B of the Planning Forecast Panel are calculated in cells D40-D49 using the equation in cell D39. Shelter capacity is expressed in building sq. ft. per acre.

Massing ratios related to the gross building area options in Col. B of the Planning Forecast Panel are calculated in Col. E. These ratios are used by the equation in cell F39 to calculate the intensity represented by each gross building area option in Col. B of the Planning Forecast Panel.

Related intrusion measurements are calculated in Col. G. They are used to calculate dominance options in Col. J of the Planning Forecast Panel using the equation in cell H39.

Finally, the floor area ratio representing each gross building area option in Col. B of the Planning Forecast Panel is calculated in Col. J using the equation in cell J39.

The point is that the floor area ratios calculated in Col. J of the Planning Forecast Panel react to the specification decisions entered in the 23 boxes of the NPL forecast model. The floor area ratio does not lead them, and our emphasis on the ratio as a leadership tool has produced confusion, argument, conflict, and the application of legal opinion based on the precedent of mistaken assumptions. I’ll make my point with one issue.

In my opinion, the most significant topic omitted from floor area regulation is the provision of social open space for people at street level. The opposing argument has contended that social open space is a public benefit that should be purchased at public expense. The open space specification in cell F11 of Table 1 is zero percent in cell F11 to begin an evaluation of these two positions. The value represents a developer’s attempt to maximize leasable building area on a given, high-cost urban land area. If the floor area ratio limit for Table 1 is 19, the design specification predicts that a 20 story building will produce 823,776 sq. ft. of gross building area and a floor area ratio of 18.91. I could have adjusted the specification values to make the floor area ratio exactly 19 in cell J47, but left it so I could point out that predictions will change whenever one or more specification values are modified in Table 1.

Table 2 has revised the zero percent value in cell F11 of Table 1 to 32.18%. All other specification values from Table 1 are held constant in Table 2. The 32.18 percentage has been entered to make the floor area ratio in cell J49 of Table 2 identical to that in cell J47 of Table 1. A comparison shows that the same floor area ratio and gross building area can be achieved when 32.18% of open space is provided for pedestrian relief at street level, but the trade-off is an increase from 20 stories in Table 1 to 30 stories in Table 2. The additional stories represent additional cost to reach an equal gross building area. In the past an increase in height was considered a bonus in return for social open space at the pedestrian level, but the calculations in Table 2 show that ten additional floors produce gross building area parity.

It could be argued that a bonus would involve negotiations for building height in excess of ten stories to compensate for the cost of increased building height. It could just as easily be argued that the floor area ratio of 16 was a reasonable limit; that social open space has been ignored as an essential part of the effort to protect public health, safety, and welfare within urban pattern and form; and that the deficiency should not be allowed to continue. I do not intend to resolve the argument. I only wish to point that it can be debated on a more credible foundation of measurement, evaluation, prediction, and knowledge. Cooperation between public and private interest will not be secured until all parties can sit around a table discussing options with a common language that can accurately predict implications.



GROSS BLDG AREA

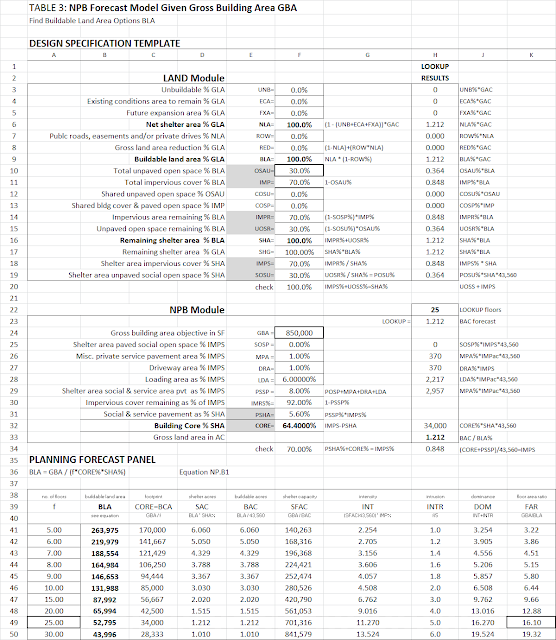

In most cases a developer will know the land area involved, but in some cases he or she will be exploring the buildable land area needed to serve a given gross building area objective when a floor area ratio is given. Table 3 has been constructed to answer this question. If a floor area ratio of 16, a gross building area objective of 850,000 sq. ft. and a 30% social open space objective are given in addition to the other specification values noted, the master equation in cell A36 and the secondary equations in row 40 of the Planning Forecast Panel predict that 1.212 buildable acres will produce a floor area ratio of 16.10 in cell K49 when a 25 story building is chosen in cell A49. A slight modification to the specification values entered in the NPB Module of Table 3 could reduce 16.10 to a precise floor area ratio value of 16 in cell K49. The entire specification would represent a public/private agreement.



Table 4 shows that when no open space is provided in cell F10, the same gross building objective and floor area ratio can be reached on the same land area with only 17.5 building floors. The floors needed to compensate for the 30% public open space dedication in Table 3 would be a subject for negotiation as mentioned previously.



CONCLUSION

When social open space was introduced in Tables 2 and 3, the intensity and dominance calculations in columns F and H of the Planning Forecast Panel dropped from those calculated in Tables 1 and 4. There is no research that defines acceptable levels of intensity and dominance, but the ability to measure these conditions brings us closer to the knowledge needed to protect public welfare and improve quality of life within urban areas.

At the present time, most cities are woven together with ribbons of sidewalk and torrents of traffic. In the most extreme cases, these rivers flow between canyons of artificial stone and glass governed by skyplane regulations that attempt to ensure light, air, and ventilation penetrate to street level. In other cases, the sidewalk is omitted and replaced by a parking lot that qualifies as a front yard. In both cases, it has been our method of protecting the public health, safety, and welfare with minimum standards that are now coming into question. Why is the public being protected with government standards meant to keep them alive with a minimum quality of life (welfare)? The measurements of shelter capacity, intensity, intrusion, and dominance in Tables 1-3 represent a method of calibrating “welfare” so that research can begin to produce the knowledge needed to define minimum standards for livable cities.

The physical intensity, intrusion, and dominance of shelter, movement and life support within cities is offset by social open space. The result is referred to as urban form composition. We have yet to write the first score in this composition with a language that can lead the orchestra. The result has been discordant practice as virtuosos independently tune their instruments.

The first step is to recognize that a language is needed. The second is to recognize that cities must be woven together with social open space before they can begin to protect a population’s physical, social, psychological, environmental, and economic welfare.

Tables 1-3 were included to illustrate how open space negotiations can begin when assumptions are replaced with accurate measurement and calculation. The debate concerns the need for this open space to protect the public welfare, and the public/private share of this expense. These are political questions that require additional knowledge, and I do believe that answers are needed. The Science of City Design[1] has been written to encourage you to explore these questions with a credible language. It can lead us to a geographically limited Built Domain capable of protecting our quality and source of life -- the Natural Domain.



[1] Hosack, Walter M., The Science of City Design, CreateSpace, 2016. (Available in paperback and e-book versions from Amazon.com)

Thursday, March 2, 2017

Improving the Influence of City Planning & Design


Public appointments and elections are based on the concept that reasonable men and women can make reasonable decisions in the absence of conclusive knowledge. When uncorrelated zoning regulations conflict with site planning reality, as they often do, the officials appointed and elected face variance requests and render decisions to resolve conflict based on project details that defeat consistent leadership direction. When faced with annexation requests, they have even less ability to accurately analyze the area’s potential to offset a municipalities shared expense per acre for administration, maintenance, improvement, and debt service as both increase in age.
Opinion did not cure the Black Plague and it will not cure pathogenic urban sprawl. Sprawl consumes agriculture and The Natural Domain in a failing attempt to surround an expanding core of blight and decay. It will continue until we begin to define the cellular structure of its anatomy in a language that can lead us to prescribe consistent, reliable, and credible treatment.
Planning commissions, councils, and mayors depend on their planning staffs, but the staff does not have the language needed to define problems, conduct research, build knowledge and convincingly defend recommendations. They must rely on conflicting regulations. This makes them servants rather than leaders of opinion; and the result is often distorted logic, political leverage, and faulty assumptions that lead to arbitrary decisions by elected and appointed officials. These decisions remind me of the considered opinions that defended blood-letting as a medical cure. A common, correlated leadership language capable of defining problems and solutions is needed.
There are now two worlds on a single planet, and The Built Domain is slowly being recognized as pathogenic sprawl that is a threat to agriculture and The Natural Domain. A correlated, scientific language of city design is needed to study a physical anatomy that will grow without restraint until a cure for this disease is found. This is not a problem that can be solved with the logic of opinion until it is supported by the science of city design. Every profession has had to invent a specifically relevant language to build knowledge, lead others, and convince popular opinion of the benefit. Architecture, city design, and city planning are no different. They are just behind as the public consequences grow.
